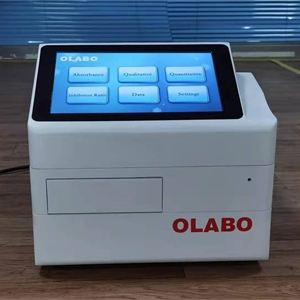

Elisa Microplate Reader
Features
1. 8-channel vertical optical system.
2. Super fast reading speed of 7 seconds.
3. 10.1-inch Large Touch Screen with visual layout function, what you see is what you get.
4. Hardware: ARM architecture high-performance low-power processor, with ADI high-precision AD conversion chip, the measurement is more accurate and stable.
5. Software: Self-developed core algorithm, with independent intellectual property rights, flexible use of multiple calculation methods.
Technical Parameters
| Model | OLB-EL10C |
| Measurement Channel | Vertical 8 optical channels; |
| Wavelength Range | 400～800 nm |
| Filter | Standard four wavelengths of 405, 450, 492, 630nm; can be installed up to ten wavelengths (optional) |
| Reading Range | 0.000～4.000 Abs |
| Linear Range | 0.000～3.000 Abs |
| Repeatability | CV≤1.0% |
| Stability | ≤±0.003Abs |
| AbsorbanceAccuracy | Absorbance value [0.0~1.0], error≤±0.02Abs |
| Absorbance value [1.0~2.0], error≤±0.03Abs | |
| Wavelength Indication Error | ≤±2nm |
| Wavelength Repeatability | ≤±1.5nm |
| Sensitivity | ≥0.01 mg/L |
| Channel Difference | ≤0.02Abs |
| Vibration Plate Function | 3 kinds of vibration platefunction , adjustable 0~255 s , |
| Display | 10.1-inch Large Touch Screen |
| Input Power | 60VA |
| Power Supply | AC220V, 50Hz |
| Interface | RS-232 |
| Packing Size (W*D*H) | 535mm*395mm*395mm |
| Gross Weight | 13kg |
