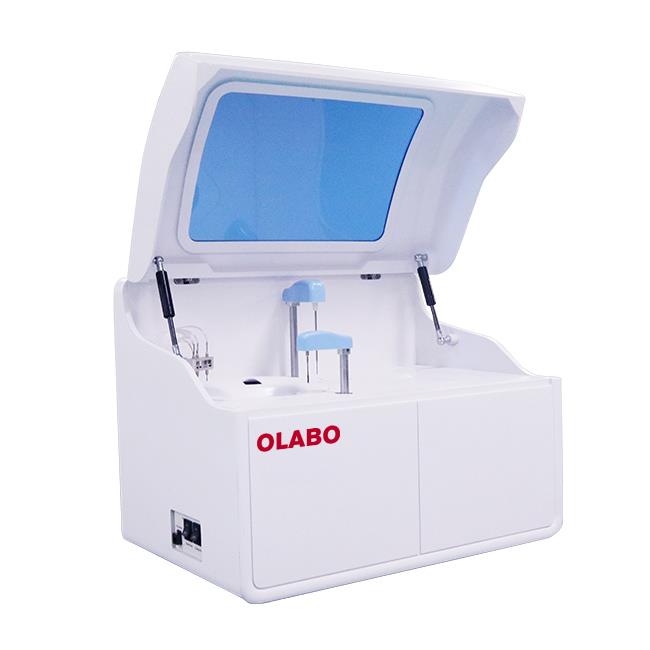

OLB-200 Auto Chemistry Analyzer 200 Tests/Hour With 37 Sample Positions
Product Description
Specification
|
Model
|
OLB-200
|
|
|
Overall
|
Throughput
|
200 Tests/hour
|
| Performance |
Analysis Method
|
End-point, Fixed-time,
Rate(Kinetic)
|
|
Certificates
|
CE, FDA, ISO9001,
ISO14001, ISO13485
|
|
|
Sample & Reagent
System
|
Sample Positions
|
37 sample positions
|
|
Reagent Position
|
28 reagent positions
|
|
|
Sample Volume
|
2~70ul
|
|
|
Reagent Volume
|
20~350ul
|
|
|

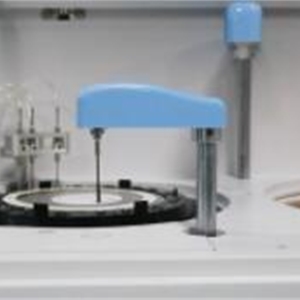

Probe
|
Teflon
coating,withanti-collision function,Liquid level detectionfunction.
|
|
|
Probe Washing
|
Automatic washing
interior and exterior
|
|
|

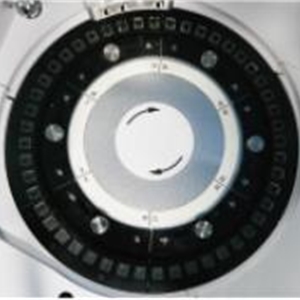

Reagent Cooling
|
Refrigerated tray with
independent switch
|
|
|
Reaction System
|
Temperature Control
|
37+0.1℃, real-time
monitoring
|
|

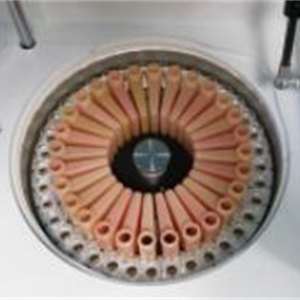

Cuvettes
|
48 reusable
cuvettes,optical length 6mm
|
|
|

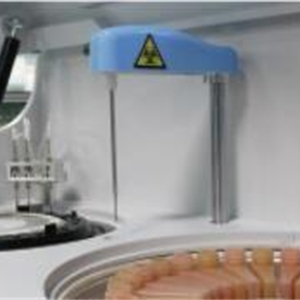

Mixer Probe
|
Independent stirring
|
|
|
Washing
|
Automatic cuvettes
washing
|
|
|
STAT function
|
YES
|
|
|
Optical System
|
Light Source
|
6V/10W halogen lamp
|
|
Spectrophotometry
|
Post-spectral
spectrophotometry
|
|
|
Wavelength
|
340,405,450,510,546,578,630,700nm
|
|
|
Absorbance
|
0~3.0Abs
|
|
|
Calibration & QC
|
Calibration
|
Linear:K factor,
1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index,
Ogarithm, Logit-4P, Logit-5P
|
|
Quality Control
|
Real-time QC, Westgard
multi rule, Cumulative Sum Check,Twin Plot(2D)
|
|
|
Data Management
|
Software
|
Windows 7/8/10 , 32or
64bit
|
|
LIS System
|
Bi-direction,support
HL7 protocol
|
|
|
Interface
|
LAN port access
|
|
|
Printer
|
External,multiple
reporting mode available
|
|
|
Working Conditions
|
Power Supply
|
AC220V±10%,50/60Hz,
110V±10%,60Hz, 300W
|
|
Temperature
|
10～30℃
|
|
|
Water Consumption
|
Deionized water:＜5L/H
|
|
|
Humidity
|
30-80%
|
|
|
Size & Weight
|
External Size (W*D*H)
|
625*425*460mm
|
|
Net Weight
|
36kg
|
|
|
Package Size (W*D*H)
|
721*531*855mm
|
|
|
Gross Weight
|
50kg
|
