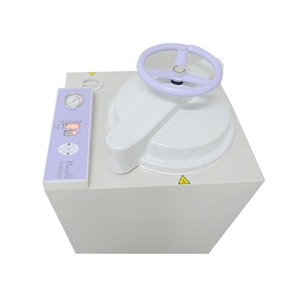

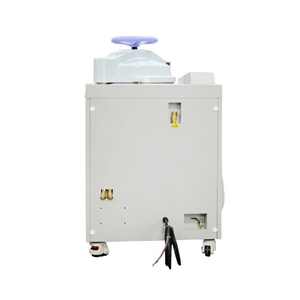

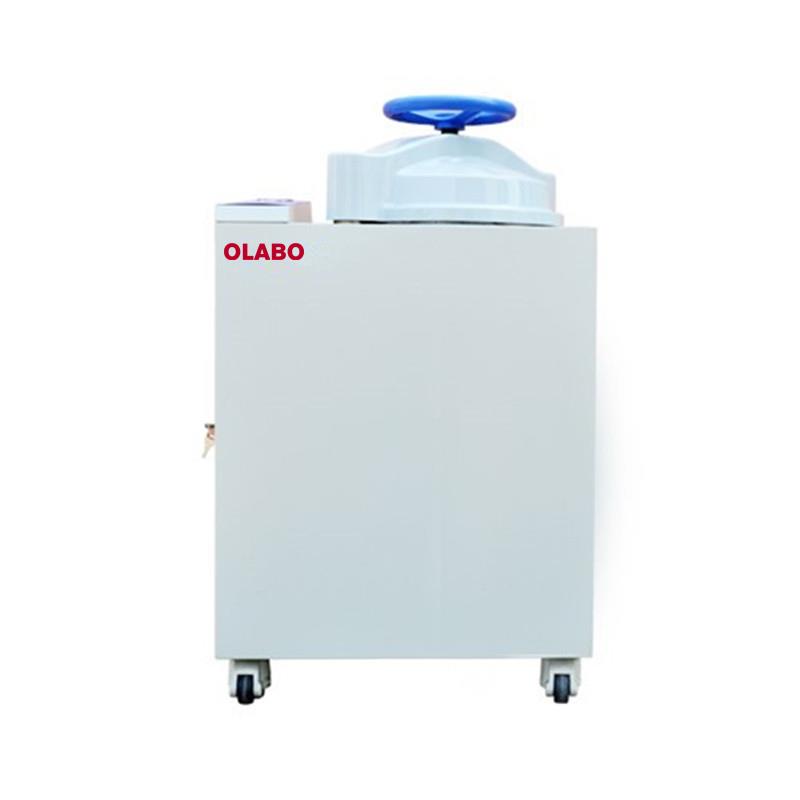

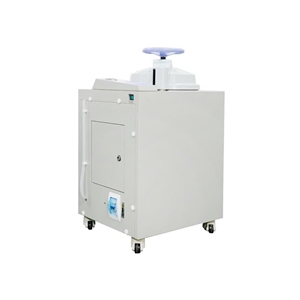

Vertical Type Hand Wheel Autoclave
Features
1. Over pressure. Safety valve can automatically open to release pressure.
2. Over temperature. The system will power off automatically.
3. Door sensor. Sensor at door closing position, to check the door status. If door is open, operation will stop.
4. Anti-dry out function. If water level is too low, system will power off and error code displays on screen.
5. Over current. over voltage or electric leakage protection apparatus-air switch.
6. Door cover.The door is covered with safety shell made of thermal insulation material, which can protect operator from burning by heat and looks nice.
Technical Parameters
Model
OLBQ-B50II
OLBKQ-B75II
OLBKQ-B100II
OLBKQ-B120BII
OLBKQ-B150II
OLBKQ-B200II
Capacity
50L
75L
100L
120L
150L
200L
Chamber Size(mm)
φ386*514
φ386*694
φ386*874
φ386*1054
φ500*760
φ500*1000
Chamber Material
SUS304
Designed Pressure
0.28Mpa
0.24Mpa
Designed Temp
150℃
138℃
Working Pressure
0.22MPa
0.217MPa
Working temp.
105~136℃
50~134℃
Temp. Displayaccuracy
±0.1℃
Timing range
0~999min
0~99h
Dynamic Pulse
Exhaust Times
0~9 times
Dynamic Pulse
Exhaust Temp.
105~134℃
Dissolution Temp.
Range
60~100℃（programmable）
Temp. Holding Range
40~60℃（programmable）
Consumption
4.4KW
4.7KW
5.2KW
5.2KW
6KW
Power Supply
AC110/220V±10%, 50/60Hz
380V, 50Hz/200V, 50/60Hz
SS Basket
1 pc
2pcs
2pcs
3pcs
3 pcs
4pcs
External Size(W*D*H)mm
640*550*970
640*550*1070
640*550*1270
640*550*1370
650*650*1400
650*650*1700
Packing Size(W*D*H)mm
750*745*1100
750*745*1240
750*745*1450
750*745*1540
800*760*1500
800*760*1720
Gross Weight（kg）
102
112
125
140
190
238
