Automatic Disinfection Robot Sterilizer
Features
-Support the use of disinfectants such as hydrogen peroxide, sodium hypochlorite, and peracetic acid.
-The large-capacity 16L disinfectant tank can continuously disinfect for more than 5 ~ 6 hours, and the disinfection coverage is up to 4000 ~ 5000 m2.
-Support APP control, no-touch automated disinfection greatly improve the safety of use in the disinfection process.
-Two disinfection modes: timed disinfection and immediate disinfection.
-With autonomous navigation function, lidar obstacle avoidance, can fully cover the required area.
-Support automatic return to charge, human assistance isn’t required
-When the disinfectant is below the warning position, it will return to the waiting area and turn off the spray device automatically.
Technical parameters
Model
OLBS-Y-800
External Size(mm)
φ500*1335
Atomization Efficiency
2L~3L/H(adjustable)
Disinfectant Capacity
16L
Spray Diameter
5-6m
Disinfection Medium
Hypochlorous acid, Chlorine dioxide, Hydrogen peroxide, Peroxyacetic acid, etc.
Spray Method

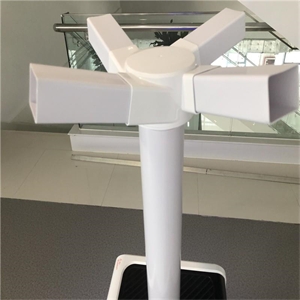

Four-direction spray, large opening spray(optional)
Moving Way
Autonomous path planning and automatic navigation
Moving Speed
0~0.6m/s
Power Supply
AC220±10%V 50Hz
Consumption
150W
Drive Method
Differential drive
Ability to Cross Obstacles
±10mm
Gradeability
≤8°
Driving Channel Width
≥700mm
Noise
≤50dB
Operating Time
5~6h
Battery
Lithium battery 28AH 24V,rechargable 10000times
Charging Time
3~4h
Safety System
Lidar obstacle avoidance, power-off protection of disinfectant shortage
Package Size
Main Body
415*415*633mm
Chassis
614*614*750mm
Gross Weight
Main Body
8.2kg
Chassis
70.4kg
