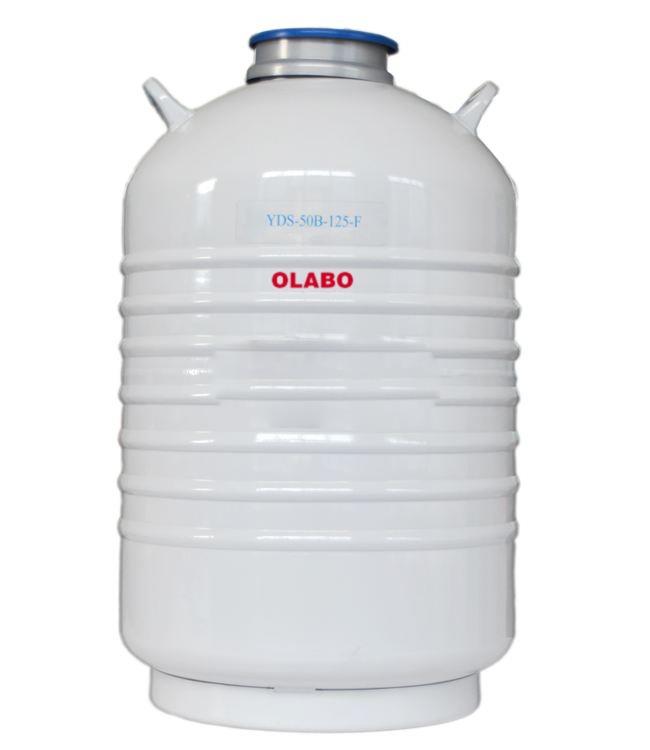

OLABO 50 liters liquid nitrogen tank YDS-50B-125-FS
Product description
Made of high-strength aluminum alloy, the product is light in quality;
High vacuum multilayer insulation design;
Optional lock cover to protect the safety of samples stored in the container.
Specification
| Model | YDS-50-125-F |
| Geometric volume (L) | 50 |
| Caliber (mm) | 125 |
| Static liquid nitrogen evaporation capacity (L/D) | 0.43 |
| Storage period of static liquid nitrogen (d) | 115 |
| Square bucket size (mm) | 82×84 |
| Box size (mm) | 76×76 |
| Number of layers of square bucket (ea) | 6 |
| Number of Ampoules (ea) | 900/1050 |
| 25ml (single) | Number of buckets（ea） |
| Layers of Freezer Shelf (ea) | 3 |
| Number of blood bags (ea) | 54 |
| 25ml (multiple) | Number of buckets（ea） |
| Layers of Freezer Shelf (ea) | 3 |
| Parallel number of frozen storage boxes (ea) | 4 |
| Number of blood bags (ea) | 84 |
| Layers of Freezer Shelf (ea) | —— |
| Number of blood bags (ea) | —— |
| 50ml (multiple) | Number of buckets（ea） |
| Layers of Freezer Shelf (ea) | —— |
| Parallel number of frozen storage boxes (ea) | —— |
| Number of blood bags (ea) | —— |
| Height (mm) | 754 |
| Outer diameter (mm) | 462 |
| Empty weight (kg) | 15.2 |
| Optional lock cover | √ |
| Optional protective cover | √ |
| Optional liquid level monitor | √ |
| Optional transport vehicle | √ |
