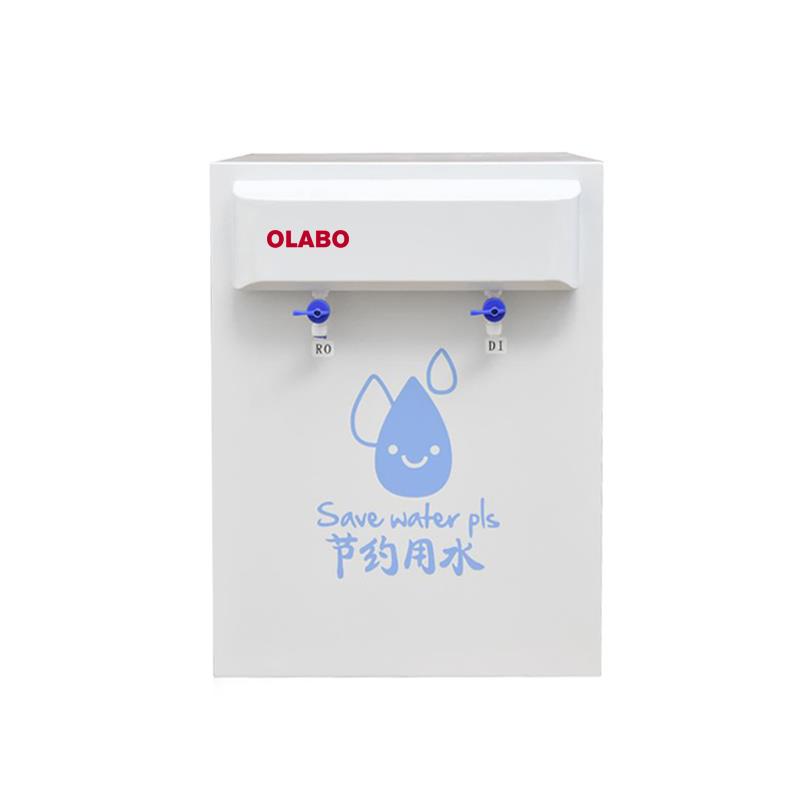

OSCSJ-I Water Purifier

Model

OSCSJ-I-10L

OSCSJ-II-30L

Water Output Type

RO &DI water

Water Output Speed

10L/H

30L/H

Purifying Procedure

PF+AC+RO+DI

Water Supply Requirement

Tap water: TDS<200ppm, 5~45℃, 1.0～3.5Kgf/cm2

Pre-treatment

10’’PP filter*1+10’’Activated carbon *2

RO unit

100GPD RO membrane*1

Subsequent unit

 Deion purification column*1

Pure Water Quality

●Soluble organic matter: Rejection rate>99% (molecular weight>100)

●Particle: Rejection rate>99%;

●Microbe: Rejection rate>99%

●Salt rejection rate:>99%;

●TDS (total solids solubility): RO water:5~10 ppm;

●Resistivity: 7.0~10.0 MΩ·cm;

 ●PM (particulate matter)  (>0.22μm): <1/ml;

●Conductivity: 0.143~0.100 μs/cm;

●Microbe/Germ: <1 CFU/ml

Water Quality Monitor

TDS (Total Dissolved Solids) meter

Consumption

48W

200W

Power Supply

AC220±10%, 50/60Hz; 110±10%,60Hz

Standard Configuration

Main body (Include 1 set of cartridges)+TDS meter

External Size (W*D*H)

394*390*502mm

325*403*650mm

Package Size (W*D*H)

531*551*621mm

391*471*1176mm & 700*300*250mm

Gross Weight

37.6kg

41kg
